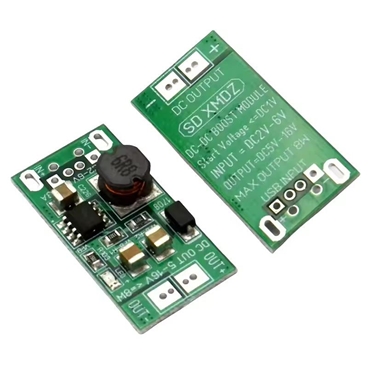

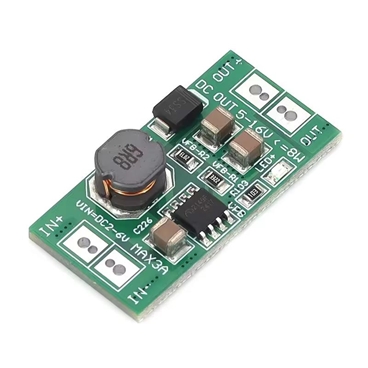

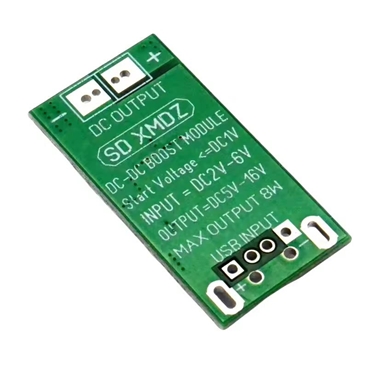

8W Boost Converter Board 3.3V 3.7V 5V to 5V 9V 12V Power boost Module

Specifications:

The starting voltage of this module is 1.2V and the working voltage is 2v-6.5v. The input cannot exceed 6.5v. Otherwise, it is easy to break down. Reverse short circuit is prohibited!

The maximum output power is 8-9W, and it is easy to overheat no matter how high it is, the maximum input current is 2A, and the peak value is 2.5A IN<2A for a long time!

Input 3.5mA V when no-load: current 2-15mA when no LED, 10-when LED (12V output test)

when the minimum input is 1.5V, 12V voltage can be output, and the current is about 10-15mA. If the output is 9V, the current is about 20-30mA.

The following is the conventional test data: (for reference only)

if it is 1.5V L 12V or 9V, it is recommended to order the LED-free version in bulk, which can reduce the no-load power! Costs will also be reduced

input DC2V boost to 12V output current is about 100mA, input DC3V boost to 12V output current is about 200mA

input DC4.2V boost to 12V output current is about 450mA, input DC 5v boost to 12V output current is about 500mA-600mA

when the input DC6V is 12V, the maximum input current 2A is 12V 700-800mA. Pay attention to the air temperature! In order to avoid overheating damage

if the boost is up to 9V, you can convert it by yourself, which is a little higher than the power of 12V, and the efficiency is also high!

For example, when 3.7V is 12V, the output current is about 400mA and the peak value is 500mA. If the output current is 9V, it is about 500mA and the peak value is 650mA.

Power output: 5V / 9V / 12V  (please specify when ordering)

Package includes:

1 X 8W Boost Converter Board 3.3V 3.7V 5V to 5V 9V 12V Power boost Module

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
